Specifications 產品說明

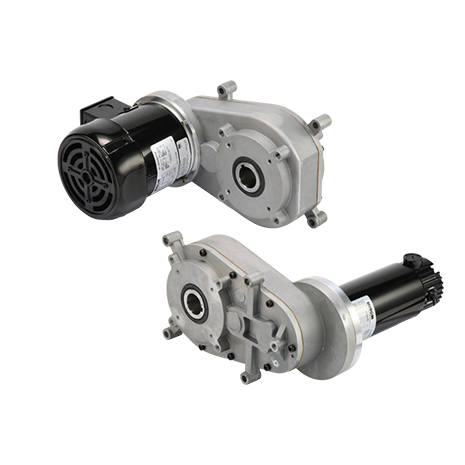

Bison® 762系列 偏置平行軸齒輪馬達
轉速RPM 6-12 · 扭距 1075 -2020 in-lbs · 輸入馬力 1/4 HP ·
只提供交流電(AC)及直流電(DC)選項
馬達規格：
Enclosure: TENV
Insulation: Class B Minimum (AC), Class F (DC)
Bearings: Ball
Rotation: Reversible
Motor Type: Permanent Split Capacitor - Capacitor Included on PSC, Permanent Magnet on DC
齒輪箱規格：
Finish: Unpainted
Mounting: Shaft Mount, Base Moung, or Face Mount Any Angle
Shafts: Hardened Steel
Bearings: Output Shaft Supported by Ball Bearings, Intermediate Gearing Supported by Needle Bearings
Lubrication: Grease
Housing: Precision Machined Die Cast Aluminum
Gearing: Hardened Steel, AGMA Class 9. 1st-Stage Helical Metal, Balance Spur Metal
Duty Rating: Continuous
Enclosure: TENV
Insulation: Class B Minimum (AC), Class F (DC)
Bearings: Ball
Rotation: Reversible
Motor Type: Permanent Split Capacitor - Capacitor Included on PSC, Permanent Magnet on DC
齒輪箱規格：
Finish: Unpainted
Mounting: Shaft Mount, Base Moung, or Face Mount Any Angle
Shafts: Hardened Steel
Bearings: Output Shaft Supported by Ball Bearings, Intermediate Gearing Supported by Needle Bearings
Lubrication: Grease
Housing: Precision Machined Die Cast Aluminum
Gearing: Hardened Steel, AGMA Class 9. 1st-Stage Helical Metal, Balance Spur Metal
Duty Rating: Continuous
