Specifications 產品說明

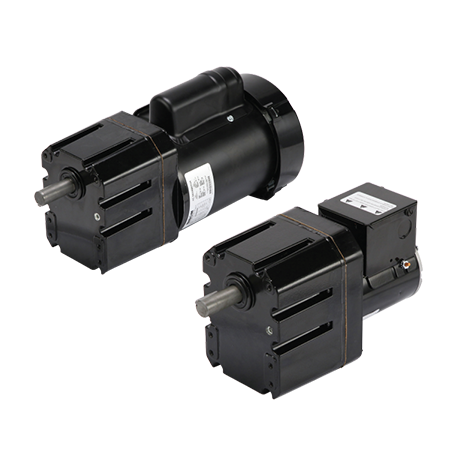

Bison® 650系列 直線平行軸齒輪馬達
轉速RPM 1-119 · 扭距 240 -710 in-lbs · 輸入馬力 1/20-1/2 HP ·
只提供交流電(AC)及直流電(DC)選項
馬達規格：
Enclosure: TEFC(DC), TEFC & TENV Available(AC)
Insulation: Class F (DC), Class B Minimum (AC)
Bearings: Ball
Rotation: Reversible
Motor Type:
Permanent Magnet (DC), Permanent Split Capacitor - Capacitor Included (AC)
齒輪箱規格：
Finish: Gloss Black Powder Coat
Mounting: All Positions
Shafts: Hardened Steel
Bearings: Needle and Thrust BAll
Lubrication: Lifetime Oil Bath, Sealed and Gasketed
Housing: Precision Machined Die Cast Aluminum
Gearing: AGMA Class 9 Heat Treated Steel, 1st-Stage Helical, Balance Spur
Duty Rating: Continuous
Enclosure: TEFC(DC), TEFC & TENV Available(AC)
Insulation: Class F (DC), Class B Minimum (AC)
Bearings: Ball
Rotation: Reversible
Motor Type:
Permanent Magnet (DC), Permanent Split Capacitor - Capacitor Included (AC)
齒輪箱規格：
Finish: Gloss Black Powder Coat
Mounting: All Positions
Shafts: Hardened Steel
Bearings: Needle and Thrust BAll
Lubrication: Lifetime Oil Bath, Sealed and Gasketed
Housing: Precision Machined Die Cast Aluminum
Gearing: AGMA Class 9 Heat Treated Steel, 1st-Stage Helical, Balance Spur
Duty Rating: Continuous
