Specifications 產品說明

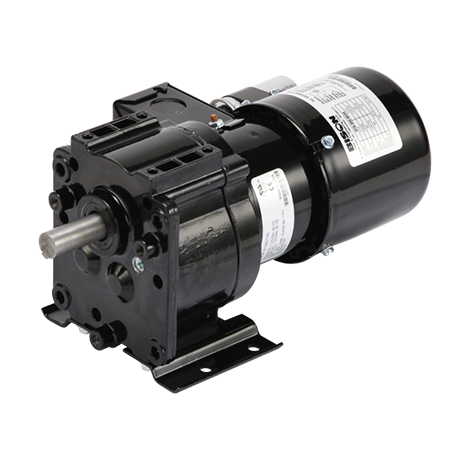

Bison® 200系列 直線平行軸齒輪馬達
轉速RPM 8-350 · 扭距 16-350 in-lbs · 輸入馬力 1/15-1/4 HP ·
提供交流電(AC)
馬達規格：
Enclosure: TEFC
Insulation: Class B Minimum
Bearings: Ball
Rotation: Reversible
Motor Type: Permanent Split Capacitor and three phase - Capacitor Included on PSC
齒輪箱規格：
Finish: Gloss Black Powder Coat
Mounting: Face (Any Angle) or baseplate
Shafts: Hardened Steel
Bearings: Needle With Thrust Ball
Lubrication: Lifetime Oil Bath, Sealed and Gasketed
Housing: Precision Machined Die Cast Aluminum
Gearing: Hardened Steel, AGMA Class 9. 1st-Stage Helical Metal, Balance Spur Metal
Duty Rating: Continuous
Enclosure: TEFC
Insulation: Class B Minimum
Bearings: Ball
Rotation: Reversible
Motor Type: Permanent Split Capacitor and three phase - Capacitor Included on PSC
齒輪箱規格：
Finish: Gloss Black Powder Coat
Mounting: Face (Any Angle) or baseplate
Shafts: Hardened Steel
Bearings: Needle With Thrust Ball
Lubrication: Lifetime Oil Bath, Sealed and Gasketed
Housing: Precision Machined Die Cast Aluminum
Gearing: Hardened Steel, AGMA Class 9. 1st-Stage Helical Metal, Balance Spur Metal
Duty Rating: Continuous
