Specifications 產品說明

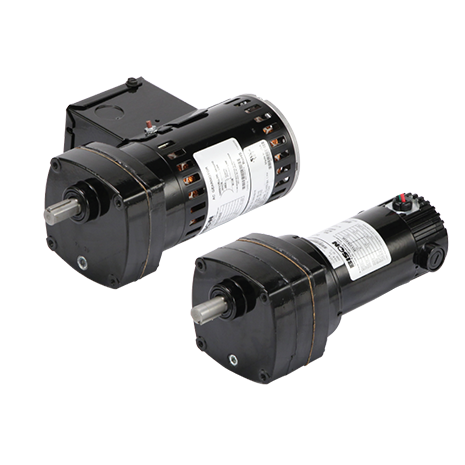

Bison® 175系列 直線平行軸齒輪馬達
轉速RPM 1-360 · 扭距 17-170 in-lbs · 輸入馬力 1/20-1/10 HP ·
提供交流電(AC)和直流電(DC)選項
馬達規格：
Enclosure:
TENV(DC), Open 1/80 & 1/10 HP, TENV 1/20 HP
TEFC 1/12 HP(AC)
Insulation: Class F (DC), Class B Minimum (AC)
Bearings: Ball
Rotation: Reversible
Motor Type:
Permanent Magnet (DC), Permanent Split Capacitor - Capacitor Included (AC)
齒輪箱規格：
Finish: Gloss Black Powder Coat
Mounting: All Positions
Shafts: Hardened Steel
Bearings: Needle Output
Lubrication: Lifetime Oil Bath, Sealed and Gasketed
Housing: Precision Machined Die Cast Aluminum
Gearing: 1st Stage Helical, All Other Stages Powdered Metal or Steel
Duty Rating: Continuous
Enclosure:
TENV(DC), Open 1/80 & 1/10 HP, TENV 1/20 HP
TEFC 1/12 HP(AC)
Insulation: Class F (DC), Class B Minimum (AC)
Bearings: Ball
Rotation: Reversible
Motor Type:
Permanent Magnet (DC), Permanent Split Capacitor - Capacitor Included (AC)
齒輪箱規格：
Finish: Gloss Black Powder Coat
Mounting: All Positions
Shafts: Hardened Steel
Bearings: Needle Output
Lubrication: Lifetime Oil Bath, Sealed and Gasketed
Housing: Precision Machined Die Cast Aluminum
Gearing: 1st Stage Helical, All Other Stages Powdered Metal or Steel
Duty Rating: Continuous
